BeamClamp®

BeamClamp® products are structural clamps designed to secure steel to steel connections without the need for onsite drilling or welding. All BeamClamp® products are available as single products or as full steel connection solutions. BeamClamp® assembly typically consists of BeamClamps, hardware, and/or location plates. Choose a product below to see their full specifications or contact us if you would like us to design a full connection solutions.

beamclamp type ba bb flange clamp

Flat Flange (Type BA + BB)

Type BA and BB clamps are commonly used in pairs to connect structural steel sections together.

beamclamp type bt bw flange clamp

Sloped Flanges (Type BT + BW)

Type BT and Type BW are used with sloped flanges or tapered steel such as S beams or crane rail sections.

beamclamp type bk flange clamp

Flat and Sloped (Type BK)

Type BK is a self-adjusting beam clamp suitable for clamping to tapered steel in varying thickness.

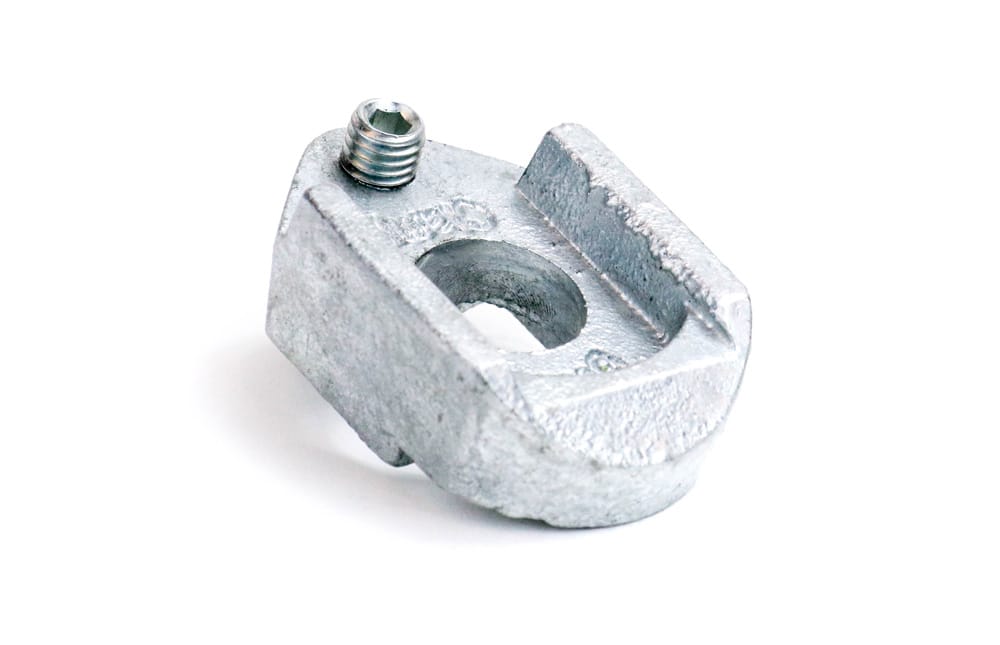

beamclamp type be1 flange clamp

Flat and Sloped Flanges (Type BE1 + BE2)

Type BE1 and Type BE2 feature a socket screw at the back to provide adjustment for varying steel thicknesses, and are the ideal choice when flange thicknesses are unknown or change on a project.

BeamClamp® Components (Type BM)

The BM is a one piece, self adjusting clamp. This clamp adjusts between a specified clamping range and is suitable for both parallel and tapered flanges.

beamclamp type bc1 bd1 flange clamps

Angles or Channels (Type BC + BD)

Type BC1 and BD1 BeamClamp components are designed for channel to channel connections or making angle/channel connections to other types of steel.

beamclamp type bl flange clamp

C Style BeamClamp® (Type BL)

Type BL is used for clamping steel directly together without the need for a location plate, and can be used with clips and brackets underneath the nut and washer side for connecting conduit or pipe work.

BeamClamp Packing Pieces - LNA Solutions

BeamClamp® Packing Pieces

Packing Pieces are used in combination with the clamping range of a BeamClamp to ensure a correct connection.

BeamClamp® Location Plates & Bolt Lengths

Location plates and brackets provide support for the rear of the BeamClamp to react against while the front clamps down on to steel.

beamclamp type by byp high friction clamp

Beamclamp® High Friction Components (Type BY + BYP)

Type BY clamp is designed for high friction and tensile applications which exceed the capacities of the standard BeamClamp products.

Beamclamp® Packing Pieces for Type BY

BeamClamp® Packing Pieces are a range of packing pieces designed to provide support to the underside of Type BY clamps.

beamclamp type bb long nose flange clamp

Beamclamp® Type BB Long Nose (BBLN)

Type BB Long Nose is very similar to our standard Type BB, but with an extended nose. Type BBLN Clamps are typically used for higher loads on larger Wide-Flange Beams.

BoxBolt®

LNA Solutions proprietary BoxBolt® product line provides the simplest and fastest way to connect to HSS (Hollow Structural Sections), where access is restricted from the back of the connection. BoxBolt® products are structural anchor bolts which rid the need of onsite drilling or welding through bolting. Our BoxBolts comply with International Building Codes, and are supplemented with LNA Solutions' BoxSok installation tool which amplifies the speed and simplicity of installation for steel-to-steel connection projects.

ICC Approved BoxBolt® (Type C)

ICC Approved BoxBolt® (Type C)

Blind bolt fasteners for faster, easier, blind structural connections suited for every environment and application. Physically tested with IAS certification.

boxbolt blind bold fastener

The Original Boxbolt®

The BoxBolt, also known as Blind bolt fasteners, are used for faster, easier, blind structural connections suited for every environment and application. The BoxBolt is often used on high profile projects where building aesthetics are essential, and can be adapted to suit the requirements of our client and the architect to make the connection pleasing to the eye Check out our case studies to learn more about how the BoxBolt has been used in a variety of specific applications:

Boxsok™ Rapid Assembly Tool

A rapid assembly tool specially designed for the BoxBolt®

Steel Floor Fasteners

LNA Solutions Steel Floor Fasteners (also known as Grating Fasteners) are all used for fastening either open steel gratings or solid steel plate flooring to supporting steel underneath. Grating Clips and FloorFix both allow flooring to be connected securely without the need for access to the underside of the floor, nor drilling or welding to the supporting steel.

Floor Fix Grating Clip, LNA Solutions

FloorFix HT™

FloorFix HT™ has all the benefits of our original FloorFix™ design, while also allowing for a higher degree of construction tolerance.

FloorFix™

Designed to clamp flooring plate to supporting steel from the top without the need for on-site drilling, tapping, bolting or welding.

Grating Clip GM - Grating Fastener

G-Clip GM

The G-Clip GM fastener is a galvanized steel fastener used to mount devices onto the grating surface.

Grating Clip GG - Grating Fastener

G-Clip GG

The G-Clip GG fastens bar grating to a horizontal-facing steel structural member edge.

Grating Clip GrateFix - Grating Fastener

GrateFix™ Grating Clip

A heavy-duty steel grating clamp that allows open floor grating to be clamped to supporting steel from the top.

Grating Clip - Grating Fastener, LNA Solutions

The Grating Clip

The most common style of floor grating clamps.

Pre-Engineered Solutions

Some products are used for connecting building services or supports for building services to the main steel structure. Learn more about the products full specifications and how they apply to any application.

beamclamp rigging clamp

Beamclamp® Rigging Clamps

The adjustable rigging clamp is a ready-to-install clamp accommodating a safe working load of up to 5,000 lbs.

beamclamp blind rigging clamp

BoxBolt® Rigging Clamps

LNA Solutions blind rigging clamp allows the attachment of anchor points to Hollow Structural Sections.

FastFit Application

Fast-Fit

FastFit is a steel I-Beam connection system, engineered for secure and efficient installation.

Hemispherical Cups & Washers - LNA Solutions

Hemispherical Cups And Washers

The hemispherical cups and washers provide pivotable action when used with threaded rod.
