Structural Applications
LNA Solutions BeamClamp® and BoxBolt® range of clamps are a series of products that provide secure clamping methods for structural steel applications. The clamping solutions join steel without the need for on-site drilling or welding, giving more flexibility than traditional steel-to-steel connection methods and guarantees connection every time.
PRE-ENGINEERED SOLUTIONS APPLICATIONS
LNA Solutions pre-engineered solutions used for connecting building services or supports for building services to the main steel structure. View how each solution applies to any application.
-
Service Support Application 40 — Hemispherical cup/washer hanging an I-Section underneath a sloping section
-
Service Support Application 42 — BL Flange clamp with pipe clip and threaded bar hanging pipework
-
Service Support Application 44- Heavy Duty Pipe Support to I-Section
-
BeamClamp® Rigging Clamp Application 1- Adjustable Rigging Clamp Below I-Section
-
BeamClamp® Rigging Clamp Application 2- Adjustable Rigging Clamp for Flange Widths of 4" to 24"
Steel Floor Fasteners

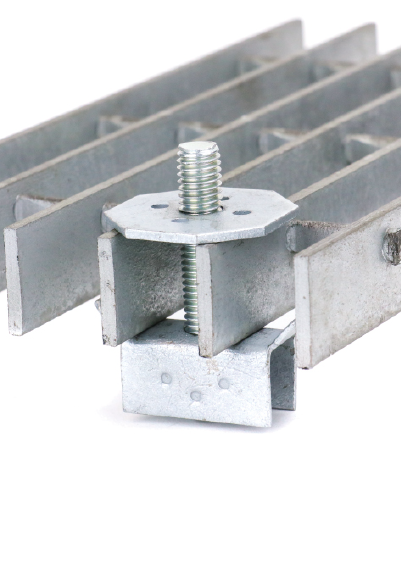

LNA Solutions Steel Floor Grating Clips (also known as Grating Fasteners) are all used for securing either open steel gratings or solid steel plate flooring to supporting steel. Our line of floor grating fasteners are available in several styles to suit varying dimensions and applications.
-
SFF01: Open floor grating to be clamped to supporting steel
-
SFF02: Open floor grating clamping to horizontal-facing steel structural member edge
-
SFF03: Clamps Open Floor Grating to Structural Steel
-
SFF04: Clip securing under open floor grating to mount devices onto the surface
-
SFF05: Flooring plate clamping to supporting steel underneath
BOXBOLT® APPLICATIONS
LNA Solutions proprietary BoxBolt® product line provides the simplest and fastest way to connect to Hollow Structural Sections, where access is restricted from the back of the connection without the need for onsite drilling or welding through bolting. It can be used with rectangular, square or circular sections, providing varied use in multiple applications.
-
BB01: Two hollow sections at 90 degrees using an end plate
-
BB02: Hollow section below an I-Beam at 90 degrees using a combination of BoxBolt and BeamClamp fixings
-
BB03: Two hollow sections at 90 degrees using angle brackets
-
BB04: Hollow section sleeve connection creating an aesthetic joint from the outside
-
BB05: Angle to vertical hollow section post
-
BB06: Rigging point to outside of hollow section
-
BB07: Side fixing of handrail base to hollow section
-
BB08: Top fixing of handrail base to hollow section
-
BB09: Glazing bracket to hollow section
BEAMCLAMP® APPLICATIONS
LNA Solutions BeamClamp® products are ideal for secondary steel connections and allows structural clamping without the need to drill or weld on site. Learn more features and benefits of this solution. All BeamClamp products are available as single products or as full steel connection solutions. BeamClamp assembly typically consists of BeamClamps, hardware, and/or location plates.
-
BC01: Two I-Sections of equal width running parallel
-
BC02: Two I-Sections at 90 degrees to each other using a location spacer bracket
-
BC03: Two I-sections at 90 degrees with a sloping top beam using two location plates
-
BC04: I-Section with end plate to column at 90 degrees
-
BC05: I-Section to I-Section with an angled cross over
-
BC06: I-Section to I-Section at 90 degrees to each other
-
BC07: I-Sections of different widths running parallel
-
BC08: I-Section to top of a column end plate
-
BC09: Sloping I-section with a gap to another I-section using a spacing bracket
-
BC10: Two I-Sections at 90 degrees with a gap between using threaded bar and location plates
-
BC11: I-Section secured to the inside flange of another I-Section
-
BC12: Column end plate to sloping I-Section
-
BC13: I-Section to I-Section column using a location plate
-
BC14: Heavy duty pipe support to I-Section
-
BC15: Cantilevered angle support to I-Section
-
BC16: Drilled I-Section running parallel to another I-Section
-
BC17: Fixed rigging point below an I-Section
-
BC18: Swivel rigging point below an I-Section
-
BC19: Column end plate to I-Section
-
BC20: Hemispherical cup/washer hanging an I-Section underneath a sloping section
-
BC21: Two I-sections at 90 degrees with a sloping top beam using two location plates
-
BC22: Two channels secured back to back
-
BC23: Angle section below an I-Section at 90 degrees
-
BC24: Channel section secured above an I-Section using two location plates
-
BC25: Channel section underneath another channel section at 90 degrees
-
BC26: Channel section at 90 degrees below an I-Section
-
BC27: Channel section below I-Section at 90 degrees
-
BC28: Channel section face upwards below I-Section at 90 degrees
-
BC29: Angle section to another angle section at 90 degrees
-
BC30: Channel positioned above I-Section at 90 degrees
